- Compact, easy to wear and convenient in use
- LED visual indication and Audible indication
- AC Voltage 110-22.8kV
- Frequency 50-60Hz
- Non-contact detection by proximity
- IP65 waterproof housing
- Use on wrist, arm or on a safety helmet
- Self-test function
- Comply with EN 61326-1
- Low power consumption
Description

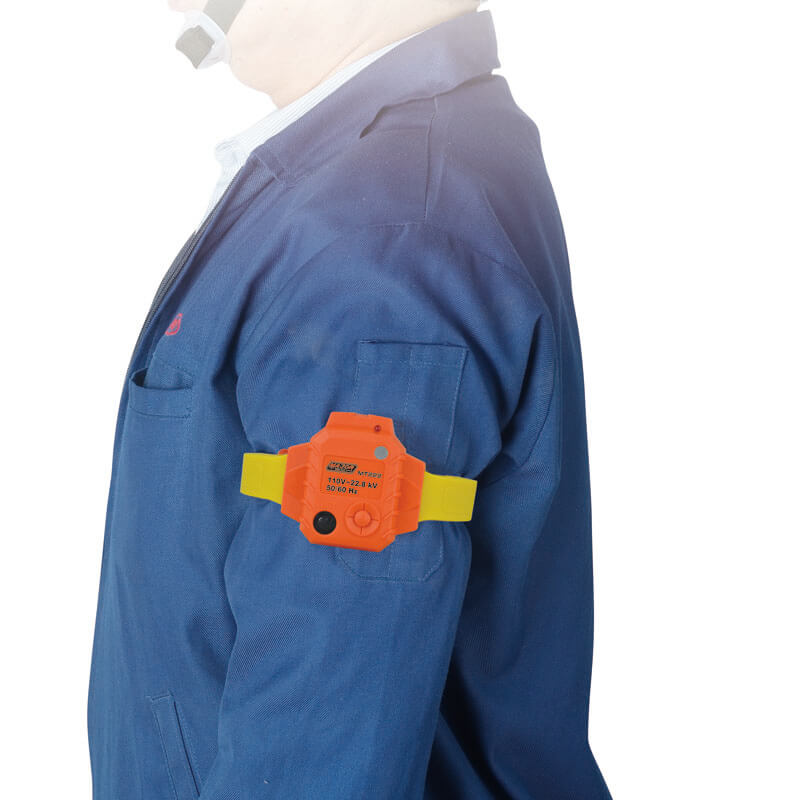

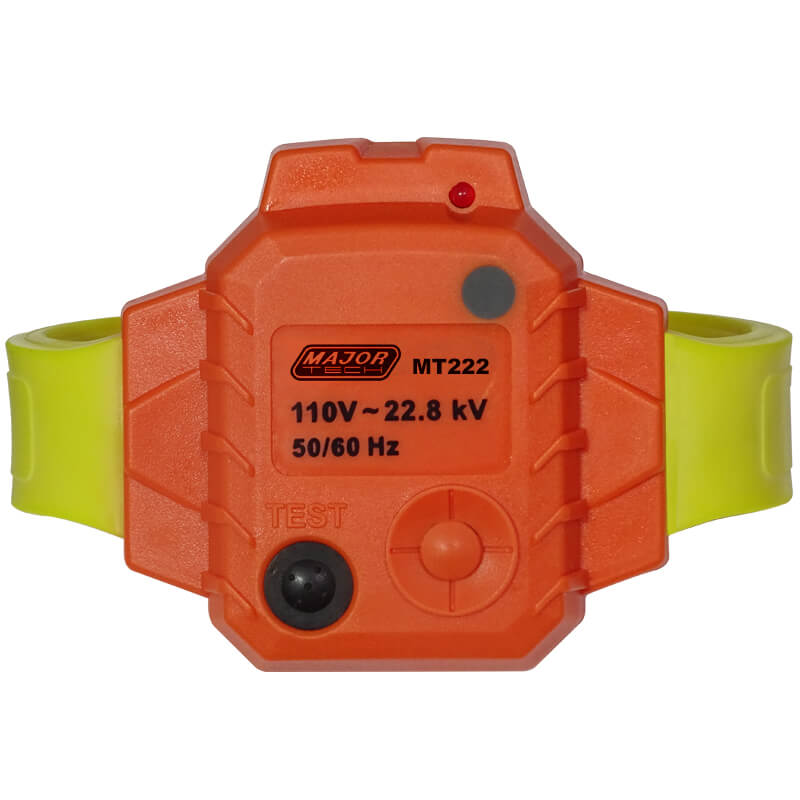

The MT222 AC High Voltage Detector is a personal sensor for detecting AC Voltage from 100V AC to 22kV AC and alert users with bright LED indication and a loud audible buzzer sound, while approaching live equipment where dangerous voltage is present. The MT222 provides electric engineering personnel, power engineering personnel, firefighting personnel and instrument equipment workers with prominent warning when approaching high voltage source. Supplied with a rubber strap and hooks, the unit can be worn on the wrist, around the arm or placed on a safety helmet. The unit uses a CR2032 battery and typical battery life is around 50 hours.
Specifications
| Function |
Range |
| Power On Indicator |
Self-Test button |
| Non-Contact Voltage (NCV) |
Yes |
| AC Voltage |
110 – 22.8kV |
| Frequency |
50 – 60Hz |
| Voltage Detector Visual |
Red LED |
| Voltage Detector Audible |
Intermitted beeps |
| Enclosure |
Moulded IP65 |
| Battery |
CR2032 |
| Weight |
70g |
| Dimensions |
61 x 62 x 18.5mm |
| Safety Specs |
IEC61326-1 |
Accessories
3 x clips
Adjustable elastic Strap
CR2032 Battery
Instruction Manual
