Accupoint Weigh Modules

Accupoint Weigh Modules

$1,323.12 AUD
$1,323.12 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.
View full details

The Accupoint epitomizes quality in weighing measurement devices. Incorporating top level protection while maintaining performance specifications, the Accupoint improves safety whilst reducing load cell damage and plant down time.

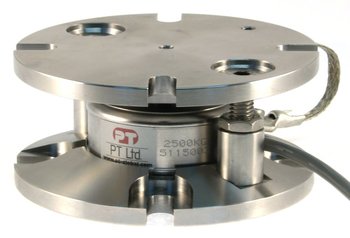

Manufactured of stainless steel with special long life hardened contact points, the Accupoint Weigh Module® includes a high precision stainless steel mini disk load cell sealed to IP68. Well suited for outdoor and harsh environment operations, these units provide years of high precision weighing with minimal maintenance. Popular installations include vessel weighing in food processing plants such as dairies as well as chemical and bottling plants. Also ideal for use on tanks and silos in the agricultural industry; the Accupoint is a versatile weigh module.

Available in nine capacities from 100kg to 50t, with typical weighing options up to 200 tonnes in a standard four support vessel. Add a digital indicator and summing box for a care free complete kit for your installation or use as a stand alone module. Either way, every Accupoint is a self contained weigh point with built in side and uplift restraints for easy installation, only requiring bolting into place.

Videologo_tiny

ACCUPOINT Weigh Module
videoACCUPOINT - Introducing the Accupoint
Pdf_icon Accupoint Static Datasheet
Product Brochure and Specifications

SPECIFICATIONS
Signal Output at Capacity 2±0.02 mV/V
Linearity Error < 0.070% FSO
Non-Repeatability < 0.050% FSO
Hysteresis < 0.050% FSO
Creep/(30 mins.) < 0.070% FSO
Zero Balance < 1% Capacity
Temperature Effect on Span (/10C) < 0.025% FSO
Temperature Effect on Zero/10ºC < 0.025% FSO
Compensated Temperature Range -10 ~ 50 C
Operating Temperature Range -20 ~ 65 C
Storage Temperature Range -50 ~ 85 C
Excitation +ve RED
Signal +ve GREEN
Service Load 100% Capacity
Safe Load 150% Capacity
Safe Side Load 10% Capacity
Ultimate Load 300% Capacity
Input Resistance 410Ω Nominal
Output Resistance 350Ω ±3Ω
Insulation Resistance > 5000 MΩ (@ 50V DC
Excitation Voltage (Rec) 5 ~ 15 V AC/DC
Excitation Voltage (Max) 20 V AC/DC
Cable PUR Dia. 4.5~5.0 mm
Material Stainless Steel
Excitation -ve BLACK
Signal -ve WHITE

DIMENSIONS CAPACITIES
Accupoint Model
ACCST-100kg
ACCST-250kg
ACCST-500kg
ACCST-1000kg
ACCST-2500kg
ACCST-5000kg
ACCST-10000kg
ACCST-25000kg
ACCST-50000kg
 Capacity
100kg
250kg
500kg
1000kg
2500kg
5000kg
10000kg
25000kg
50000kg

Dimensions (mm)
Capacity Order A B
 C D E F Cable length (m) Uplift (N) Weight(kg)
100kg ACCSTA0100SXXX 45 100 6 80 9 10 3 7500 1.4
250kg ACCSTA0250SXXX 45 100 6 80 9 10 3 7500 1.4
500kg ACCSTA0500SXXX 45 100 6 80 9 10 3 7500 1.4
1000kg ACCSTA1000SXXX 45 100 6 80 9 10 3 7500 1.4
2500kg ACCSTA2500SXXX 45 100 6 80 9 10 3 7500 1.4
5000kg ACCSTA5000SXXX 65 150 10 130 11 12 5 12000 2.2
10000kg ACCSTA010TSXXX 65 150 10 130 11 12 5 12000 2.2
25000kg ACCSTA025TSXXX 90 178 12 150 13 14 10 15000 7.2
50000kg ACCSTA050TSXXX 112 223 15 195 18 16 10 32000 15.0
(Due to PT’s policy of continuous development, specifications and products offered are subject to change without notice.)
