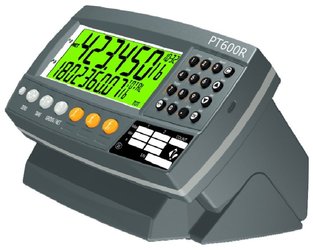

Advanced Function Digital Weighing Indicator - PT600R

Advanced Function Digital Weighing Indicator - PT600R

$2,816.64 AUD
$2,816.64 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.
View full details
The PT600R series indicators feature an innovative new design concept combined with many important technological improvements that are totally new to the weighing industry.

The exceptionally large LCD display (29mm main digits) is complemented by super-bright LED backlighting to ensure easy reading in all lighting conditions (including bright sunlight).

The silicone keypads offer superb feedback with a precise soft-touch operation. There are three assignable function keys to alleviate confusion when performing special keystroke operations.

Pdf_icon PT600R Datasheet
Product Brochure and Specifications

SPECIFICATIONS
Resolution Up to 100,000 divisions, Min of 0.25µV/Division
Zero Cancellation ± 2mV/V
Span Adjustment 0.1mV/V ~ 3mV/V
Stability/Drift Zero < 0.1µV/°C ( + 8ppm Deadload Max)
Span TC < 8ppm/°C
Linearity Error < 20ppm
Noise < 0.2µVp-p
Excitation 7.4V for up to 16 x 350 or 32 x 700Ω Load Cells, (4-wire or 6-wire plus shield)
Max Total Load Cell Resistance 1,000Ω
A/D Type 24bit Sigma Delta with ± 8.388,608 internal Counts
Operating Environment -10 ~ 50°C Ambient Temperature, < 90% Non-Condensing Humidity, -20 ~ 50°C Ambient Storage
IP55 when panel mounted, or with rear boot (otherwise IP40)
Case Materials ABS, Silicone Rubber, Nylon, Acrylic (no halogen used)
Packing Weight Basic Indicator 0.6kg
Battery Backed Clock Calendar Battery Life 10 Years Minimum
Assignable Function Keys Printing, Unit Switching, Counting, Manual Hold, Peak Hold, Totalising.
LCD (with 4 Alpha-numeric Displ LED Backlit
Primary Display 6 x 28.4mm High Digits with Units & Annunciators
2nd Display 9 x 17.6mm digits with units
3rd Display 8 x 6.1mm digits
4th Display 4 x 7.6mm digits
Setup & Calibration Full Digital. Visual Prompting In Plain Messages
Digital Filter Sliding Window Average
Zero Range 0.1 ~ 30 seconds, Adjustable ±2 ~ 20% Full Capacity
Standard Power Input 12 ~ 24V DC (15 VA max)
ON/OFF Key With Memory Feature
Variants 110/240V AC 50/60HZ Input
Optical Data Communications Magnetically coupled optical communications support with optional conversion cable which connects directly into a standard USB or RS-232 Port
Correction Ten Point Linearity Correction
Serial Outputs (Standard) RS-485 transmit only for remote display, RS-232 serial port for remote display, network or printer. Supports transmission rate: 2400, 4800, 9600 or 19200 Baud

DIMENSIONS
PT600R
