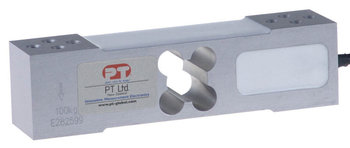

Aluminium Single Point Loadcell - PTASP6-E

Aluminium Single Point Loadcell - PTASP6-E

$215.34 AUD
$215.34 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.
View full details
Medium to high capacity versatile single point load cell. Suitable for most simple weighing scales in industrial use. The PTASP6-E is a small physical footprint in relation to its capacity, making it ideal for low cost compact medium/high capacity scales. Typical applications often include packaging machines, filling machines, industrial process control. Sealed to IP65.

Pdf_icon PTASP6-E Datasheet
Product Brochure and Specifications


SPECIFICATIONS


Signal Output at Capacity
Linearity Error
Non-Repeatability
Combined Error
Off Centre Load Error
  Creep/(30 mins.)
Zero Balance
Temperature Effect On Span/10C
Temperature Effect on Zero/10C
Operating Temperature Range
Compensated Temperature Range
Storage Temperature Range
Excitation +ve
Signal +ve
 2±0.2 mV/V
< 0.017% FSO
< 0.010% FSO
< 0.020% FSO
< 0.020% FSO
< 0.015% FSO
< 2% Capacity
< 0.014% FSO
< 0.017% FSO
-35 ~ +65 C
-10 ~ +40 C
-50 ~ 85 C
RED
GREEN
 Service Load
Safe Load
Ultimate Load
Input Resistance
Output Resistance
Insulation Resistance
Excitation Voltage (Rec)
Excitation Voltage (Max)
Cable
...
Material
Sealing
Excitation -ve
Signal -ve
 100% Capacity
150% Capacity
300% Capacity
406Ω ± 6Ω
350Ω  ± 3Ω
> 5000 MΩ (@50 VDC)
5 ~ 12 V AC/DC
18 V AC/DC
2m long, Ø5.0 mm
4 core screened PVC
Aluminium Alloy
IP65
BLACK
WHITE

DIMENSIONS CAPACITIES
PTASP6-E Model
PTASP6-E 50kg
PTASP6-E 60kg
PTASP6-E 80kg
PTASP6-E 100kg
PTASP6-E 150kg
PTASP6-E 200kg
PTASP6-E 300kg
 Capacity
50kg
60kg
80kg
100kg
150kg
200kg
300kg
(Due to PT’s policy of continuous development, specifications and products offered are subject to change without notice.)
