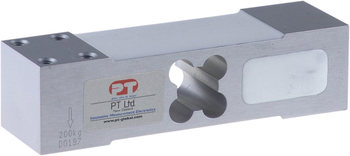

Aluminium Single Point Loadcell - PTASP6-E3
Aluminium Single Point Loadcell - PTASP6-E3
Regular price
$200.12 AUD
Regular price
Sale price
$200.12 AUD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
| Super accurate class3 medium to high capacity versatile single point load cell. Suitable for most simple weighing scales in industrial use. The PTASP6-E3 is a small physical footprint in relation to its capacity, making it ideal for low cost compact medium/high capacity scales. Typical applications often include packaging machines, filling machines, industrial process control. Sealed to IP65. |
 |
PTASP6-E3 Datasheet |
| Product Brochure and Specifications |
|
SPECIFICATIONS |
|||
| Signal Output at Capacity Linearity Error Non-Repeatability Combined Error Off Centre Load Error Creep/(30 mins.) Zero Balance Temperature Effect On Span/10C Temperature Effect on Zero/10C Operating Temperature Range Compensated Temperature Range Storage Temperature Range Excitation +ve Signal +ve |
2±0.2 mV/V < 0.017% FSO < 0.010% FSO < 0.020% FSO < 0.020% FSO < 0.020% FSO < 2% Capacity < 0.014% FSO < 0.017% FSO -35 ~ +65 C -10 ~ +40 C -50 ~ 85 C RED GREEN |
Service Load Safe Load Ultimate Load Input Resistance Output Resistance Insulation Resistance Excitation Voltage (Rec) Excitation Voltage (Max) Cable ... Material Sealing Excitation -ve Signal -ve |
100% Capacity 150% Capacity 300% Capacity 406Ω ± 6Ω 350Ω ± 3Ω > 5000 MΩ (@50 VDC) 5 ~ 12 V AC/DC 18 V AC/DC 3m long, Ø5.0 mm 4 core screened PVC Aluminium Alloy IP65 BLACK WHITE |
| DIMENSIONS | CAPACITIES | |
 |
Model PTASP6-E3 50kg PTASP6-E3 100kg PTASP6-E3 150kg PTASP6-E3 200kg PTASP6-E3 250kg PTASP6-E3 300kg |
Capacity 50kg 100kg 150kg 200kg 250kg 300kg |
