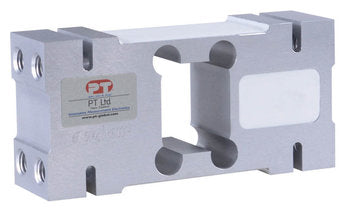

| The PTASP6-F is a super high capacity single point load cell. A unique design allows for very large platform sizes up to 1200mm x 1200mm. Direct mounted in this design makes a low profile platform with one single load cell. This load cell is used in many other applications where a relatively small high capacity cell can be housed in a construction such as in hanging or crane scales plus many other industrial applications from check weighing to safety areas. Two additional sense wires feed back the voltage reaching the load cell which improves performance. |
 |
PTASP6-F Datasheet |
| Product Brochure and Specifications |
|
SPECIFICATIONS |
|||
| Signal Output at Capacity Linearity Error Non-Repeatability Combined Error Off Centre Load Error Creep/(30 mins.) Zero Balance Temperature Effect On Span/10C Temperature Effect on Zero/10C Operating Temperature Range Compensated Temperature Range Storage Temperature Range Excitation +ve Signal +ve Sense +ve |
2±0.2 mV/V < 0.017% FSO < 0.010% FSO < 0.020% FSO < 0.020% FSO < 0.020% FSO < 2.0% Capacity < 0.014% FSO < 0.017% FSO -35 ~ +65 C -10 ~ +40 C -50 ~ 85 C RED BLUE BROWN |
Service Load Safe Load Ultimate Load Input Resistance Output Resistance Insulation Resistance Excitation Voltage (Rec) Excitation Voltage (Max) Cable ... Material Sealing Excitation -ve Signal -ve Sense -ve |
100% Capacity 150% Capacity 300% Capacity 409Ω ± 6Ω 350Ω ± 6Ω > 5000 MΩ (@50 VDC) 5 ~ 12 V AC/DC 18V AC/DC 3m long, Ø6.2 mm 6 core screened PVC Aluminium Alloy IP65 YELLOW WHITE BLACK |
| DIMENSIONS | CAPACITIES | |
 |
Model PTASP6-F 50kg PTASP6-F 100kg PTASP6-F 150kg PTASP6-F 200kg PTASP6-F 250kg PTASP6-F 500kg PTASP6-F 750kg PTASP6-F 1000kg PTASP6-F 2000kg |
Capacity 50kg 100kg 150kg 200kg 250kg 500kg 750kg 1000kg 2000kg |
| Dimensions mm(inches) |
||||||||||||
| Capacity |
Order | Platform |
L |
W |
H | D |
P |
M | Weight kg) |
|||
| 50kg |
SPM0050A06FXXX | 600x600mm |
156(6.14) |
44(1.73) |
75(2.95) | 50(1.97) |
24(0.94) |
M12 | 1.2 |
|||
| 100kg |
SPM0100A06FXXX | 600x600mm |
156(6.14) |
44(1.73) |
75(2.95) | 50(1.97) |
24(0.94) |
M12 | 1.2 |
|||
| 150kg | SPM0150A06FXXX | 600x600mm | 156(6.14) | 44(1.73) | 75(2.95) | 50(1.97) | 24(0.94) | M12 | 1.2 | |||
| 200kg | SPM0200A06FXXX | 600x600mm | 156(6.14) | 44(1.73) | 75(2.95) | 50(1.97) | 24(0.94) | M12 | 1.2 | |||
| 250kg | SPM0250A06FXXX | 600x800mm | 146(5.75) | 60(2.36) | 95(3.74) | 70(2.76) | 36(1.42) | M12 | 1.8 | |||
| 500kg | SPM0500a06FXXX | 600x800mm | 146(5.75) | 60(2.36) | 95(3.74) | 70(2.76) | 36(1.42) | M12 | 1.8 | |||
| 750kg | SPM0750A06FXXX | 1200x1200mm | 176(6.93) | 76(2.99) | 125(4.92) | 95(3.74) | 46(1.81) | M16 | 3.65 | |||
| 1000kg | SPM1000A06FXXX | 1200x1200mm | 176(6.93) | 76(2.99) | 125(4.92) | 95(3.74) | 46(1.81) | M16 | 3.65 | |||
| 2000kg | SPM2000A06FXXX | 1200x1200mm | 176(6.93) | 76(2.99) | 125(4.92) | 95(3.74) | 46(1.81) | M16 | 3.65 | |||
