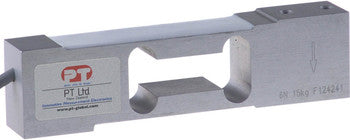

Aluminium Single Point Loadcell - PTASP6-N
Aluminium Single Point Loadcell - PTASP6-N
Regular price
$176.32 AUD
Regular price
Sale price
$176.32 AUD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
| Low profile single point load cell designed for direct mounting in low cost scales. Suitable for most compact retail, bench and counting scales to 100kg capacity. Two additional sense wires feed back the voltage reaching the load cell which improves performance. |
 |
PTASP6-N Datasheet |
| Product Brochure and Specifications |
|
SPECIFICATIONS |
|
||
| Signal Output at Capacity Linearity Error Non-Repeatability Combined Error Off Centre Load Error Creep/(30 mins.) Zero Balance Temperature Effect On Span/10C Temperature Effect on Zero/10C Operating Temperature Range Compensated Temperature Range Storage Temperature Range Excitation +ve Signal +ve Sense +ve |
2±0.2 mV/V < 0.017% FSO < 0.010% FSO < 0.020% FSO < 0.020% FSO < 0.020% FSO < 2.0% Capacity < 0.014% FSO < 0.017% FSO <-35 ~ +65 C <-10 ~ +40 C <-50 ~ 85 C RED GREEN BLUE |
Service Load Safe Load Ultimate Load Input Resistance Output Resistance Insulation Resistance Excitation Voltage (Rec) Excitation Voltage (Max) Cable ... Material Sealing Excitation -ve Signal -ve Sense -ve |
100% Capacity 150% Capacity 300% Capacity 409Ω ± 6Ω 350Ω ± 6Ω > 5000 MΩ (@50 VDC) 5 ~ 12 V AC/DC 18V AC/DC 3m long, 5.0 mm 6 core screened PVC Aluminium Alloy IP65 BLACK WHITE BROWN |
| DIMENSIONS | CAPACITIES | |
 |
Model PTASP6-N 3kg PTASP6-N 5kg PTASP6-N 8kg PTASP6-N 10kg PTASP6-N 15kg PTASP6-N 20kg PTASP6-N 30kg PTASP6-N 50kg PTASP6-N 75kg PTASP6-N 100kg |
Capacity 3kg 5kg 8kg 10kg 15kg 20kg 30kg 50kg 75kg 100kg |
Click on the individual products below for more details, documentation and related products.
