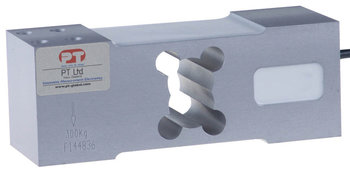

The PTASP6-W is a high capacity single point load cell which is interchangeable with many models of this construction worldwide. Designed for direct mounting in weighing platforms or side mounted in some applications, it finds many uses in counting, check weighing and general bench weighing scales. Two additional sense wires feed back the voltage reaching the load cell which improves performance.
Signal Output at Capacity Linearity Error Non-Repeatability Combined Error Off Centre Load Error Creep/(30 mins.) Zero Balance Temperature Effect On Span/10°C Temperature Effect on Zero/10°C Operating Temperature Range Compensated Temperature Range Storage Temperature Range Excitation +ve Signal +ve Sense +ve
2±0.2 mV/V < 0.017% FSO < 0.010% FSO < 0.020% FSO < 0.020% FSO < 0.015% FSO < 2% Capacity < 0.014% FSO < 0.017% FSO -35 ~ +65 C -10 ~ +40 C -50 ~ 85 C RED GREEN BLUE
Service Load Safe Load Ultimate Load Input Resistance Output Resistance Insulation Resistance Excitation Voltage (Rec) Excitation Voltage (Max) Cable ... Material Sealing Excitation -ve Signal -ve Sense -ve
100% Capacity 150% Capacity 300% Capacity 406Ω ± 6Ω 350Ω ± 3Ω > 5000 MΩ (@50 VDC) 5 ~ 12 V AC/DC 18 V AC/DC 3m long, Ø5.0 mm 6 core screened PU Aluminium Alloy IP65 BLACK WHITE YELLOW
(Due to PT’s policy of continuous development, specifications and products offered are subject to change without notice.) Click on the individual products below for more details, documentation and related products.
