Gas detection should not be complicated. The Beacon 110 is gas detection simplified.

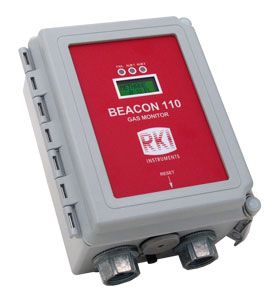

The Beacon 110 is a powerful, low cost fixed system controller for one point of gas detection. It is microprocessor controlled, versatile, simple to install and operate, and priced to be the industry’s best value single gas detection controller. It is capable of accepting RKI sensors directly for LEL level combustibles, Oxygen, Hydrogen Sulfide, or Carbon Monoxide. The Beacon 110 can also accept any 4-20 mA transmitter (2 or 3 wire, 24 VDC). Sensors can be mounted directly at the Beacon 110 housing, or can be wired remote from the controller.
The 10 amp rated relays are strong enough to directly power external alarms and horns. The digital display has backlighting and simultaneous readout of the gas type and concentration.
The Beacon 110 is also housed in a NEMA 4X rated case for a weather tight seal. This case design complies with lock out / tag out standards and can be fully secured. An external reset switch allows the alarm to be silenced from outside of the controller housing. The Beacon 110 ships complete with a wall mounting kit for easy installation.
RKI offers the industry’s widest selection of standard and toxic gas detection sensors, which can be utilized with the Beacon 110, providing gas monitoring protection for almost any application.
Fixed Systems Turnkey Solutions
Design, Consultations, and Engineering
Height: 8.5″ 216 mm Width 7.0″ 178 mm Depth 4.3″ 109 mm
Wall mounting grey polycarbonate with hinged cover.
3/4″ NPT conduit hubs, 2 provided. 1 for sensor wiring 1 for power & relay wiring
Screw type terminal block 14 gauge max.
Universal 115 VAC & 220 VAC, or 24 VDC nominal, battery backup option available
3 internal push buttons for setup, programming, and calibration. 1 external push button for alarm reset
-4°F to 122°F (-20°C to 50°C)
-4°F to 158°F (-20°C to 70°C)
0 – 100% RH
NEMA-4X enclosure, waterproof, chemical, and weather resistant.
Direct Wired Sensors
LEL Oxygen Carbon Monoxide Hydrogen Sulfide Remote amp not required for less than 500 feet.
4-20 mA Sensors
Accepts any 4-20 mA transmitter (24 VDC, 2 or 3 wire). A wide variety of RKI/Riken sensors are available with 4-20 mA signals. (See list of detectable gases.) Wiring distances up to 5000 feet
Diffusion and sample draw heads available.
3 relays – 10 amp rating (at 115 VAC), SPDT isolated contacts. 2 relays for gas alarms and 1 trouble relay. Relays fully programmable for: increasing or decreasing alarm, latching or self reset, normally energized or normally de-energized, time delay for alarm on and alarm off
Signal output, 4-20 mA (maximum load impedance 500 ohms), per channel
24 VDC (400 mA max) output provided to operate sample drawing adapters or other accessories
2 x 8 Alphanumeric display with backlighting.
Built-in audible alarm, 94 dB, mounted on enclosure Coded output: pulsing = gas alarm, steady = fail
3 LED’s on the front cover for alarm status indication, and malfunction
