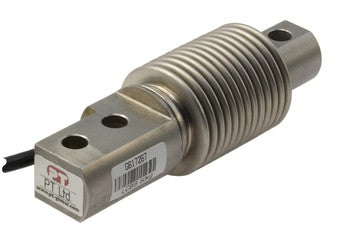

The LCBB is a low cost high accuracy stainless steel bending beam load cell. It’s fully welded and has a protection rating of IP68.

Ideal for harsh environments and high wash down areas, LCBB is widely used in food and marine industries. Common installations include belt weighing as well as weighing and packaging machines.

Precision tested, it’s available in nine capacities from 5kg - 500kg and includes 3m of cable.
Pdf_icon LCBB Datasheet
Product Brochure and Specifications

SPECIFICATIONS
Signal output at capacity 2±1% mV/V
Linearity Error < 0.017% (0.05%*)FSO
Non-Repeatability < 0.010% FSO
Combined Error < 0.020% (0.05%*)FSO
Creep/(30 mins) < 0.020% (0.07%*)FSO
Zero Balance < 1% Capacity
Temperature Effect On Span/10ºC < 0.014% ( 0.05%*)FSO
Temperature Effect on Zero/10ºC < 0.017% ( 0.07%*)FSO
Operating Temperature Range -35 ~ 65C
Storage Temperature Range -50 ~ 85C
Compensated Temperature Range -10 ~ 40C
(Specifications marked * apply to 5kg and 10kg capacities)
Excitation +ve GREEN
Signal +ve WHITE
Service Load 100% Capacity
Safe Load 150% Capacity
Ultimate Load 300% Capacity
Input Resistance 445Ω ± 65Ω
Output Resistance 351Ω ± 3Ω
Insulation Resistance > 5000 MΩ (@50 VDC)
Excitation Voltage (Rec) 5~12V AC/DC
Excitation Voltage (Max) 18 V DC
Cable 3m, Dia. 5.0mm
Material 17-4PH Stainless Steel
Environmental Protection IP68
Excitation -ve BLACK
Signal -ve RED

DIMENSIONS CAPACITIES
LCBB
 Model
LCBB-5kg
LCBB-10kg
LCBB-20kg
LCBB-30kg
LCBB-50kg
LCBB-100kg
LCBB-200kg
LCBB-350kg
LCBB-500kg
 Capacity
5kg
10kg
20kg
30kg
50kg
100kg
200kg
350kg
500kg

Dimensions (mm)
Capacity Order A
 B
 C
   D E
 F
 G
 H
 J
 K
 L
    P Weight(kg)
5kg
   LBB0005S000XXX 18
 82
 10
 8.2 31.75
 23
 39
 20
 42
 20
 120
 21.2 0.9 each
10kg
   LBB0010S000XXX 18
 82
 10
 8.2 31.75
 23
 39
 20
 42
 20
 120
 21.2 0.9 each
20kg
   LBB0020S000XXX 18
 82
 70
 8.2 31.75
 23
 39
 20
 42
 20
 120
 21.2 0.9 each
30kg   LBB0030S000XXX 18 82 10 8.2 31.75 23 39 20 42 20 120 21.2 0.9 each
50kg   LBB0050S000XXX 18 82 10 8.2 31.75 23 39 20 42 20 120 21.2 0.9 each
100kg   LBB0100S000XXX
 18 82 10 8.2 31.75 23 39 20 42 20 120 21.2 0.9 each
200kg   LBB0200S000XXX 18 82 10 8.2 31.75 23 39 20 42 20 120 21.2 0.9 each
350kg   LBB0350S000XXX 18 82 10 10.3 31.75 24 39 20 42 19 120 21.2 0.9 each
500kg   LBB0500S000XXX 18 82 10 10.3 31.75 24 39 20 42 19 120 21.2 0.9 each
(Due to PT’s policy of continuous development, specifications and products offered are subject to change without notice.)
