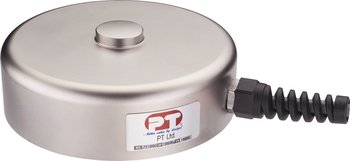

Compression Disk Loadcell - LPX

Compression Disk Loadcell - LPX

$697.95 AUD
$697.95 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.
View full details

The LPX is a popular general-purpose mini disk load cell. It’s a unique design, the whole upper section is turned in a continuous process leaving the cell with an impervious upper section. A true mini disk, the 100kg capacity is 22mm high and the 50,000kg/50t capacity only 55mm.

The LPX has a high level of protection with an IP67 rating. All electronic components are housed through the bottom of the load cell and further mechanical protection is available by simply bolting the load cell to a flat surface.

Ideal for hostile environments, the LPX is constructed of tool steel and finished in a corrosion resistant coating.

Suitable for most industrial weighing projects; tanks, hoppers and silo installations in particular.

Videologo_tiny

LPX Load Cell
videoLPX - Introducing the LPX
Pdf_icon LPX Datasheet
Product Brochure and Specifications

SPECIFICATIONS
Nominal Capacity 100kg to 50000kg
Nominal output at capacity 2.0 mV/V ± 1.0%
Factory calibration mode compression
Linearity Error 0.1% FSO
Repeatability 0.07% FSO
Zero return, creep (30 mins) 0.07% FSO
Temperature Effect On Span/10ºC 0.01% FSO
Temperature Effect on Zero/10ºC 0.07% FSO
Insulation Resistance - brg to gnd > 5000 M ohms
Insulation Resistance - cbl to gnd > 1000 M ohms
Compensated temp. range -10° C to 50° C
Output Resistance 351 ohms nominal
Excitation +ve RED
Signal +ve GREEN
*Sense +ve BROWN*
Input Resistance 410 ohms nominal
Output Resistance 351 ohms nominal
Service Load 100% of capacity
Safe Load 150% of capacity
Mechanical Failure > 300% of capacity
Recommended Excitation 5V to 20V ac/dc
Maximum Excitation 25V dc
Cable Type 4 or 6 conductor screened
Cable Length 100kg-2.5t 3 Metres 4 Core, 5t - 10t 5 Metres 6 Core, 25t - 50t 10 Metres 6 Core
Environmental Protection IP67 Standard
Excitation -ve BLACK
Signal -ve WHITE
*Sense -ve BLUE*
(*..* applies only to) capacities 5t – 50t

DIMENSIONS CAPACITIES
LPX Model
LPX-100kg
LPX-250kg
LPX-500kg
LPX-1000kg
LPX-2500kg
LPX-5000kg
LPX-10000kg
LPX-25000kg
LPX-50000kg
 Capacity
100kg
250kg
500kg
1000kg
2500kg
5000kg
10000kg
25000kg
50000kg

Dimensions (mm)
Capacity
 A
 B
 C
 D E
 F
 Weight(kg)
100-1000kg
 22
 52
 4
 30 10
 M5 x 0.8 on 44 PCD
 0.35
2.5t
 25
 52
 4
 30 10
 M5 x 0.8 on 44 PCD
 0.4
5.0t
 30
 100
 5
 95 20
 M6 x 1.0 on 85 PCD
 1.7
10.0t 35 100 5 95 20 M6 x 1.0 on 85 PCD 1.7
25.0t 50 115 10 100 32 M12 x 1.75 on 90 PCD 3.2
50.0t 55 155 12 125 45 M12 x 1.75 on 130 PCD 7
(Due to PT’s policy of continuous development, specifications and products offered are subject to change without notice.)
