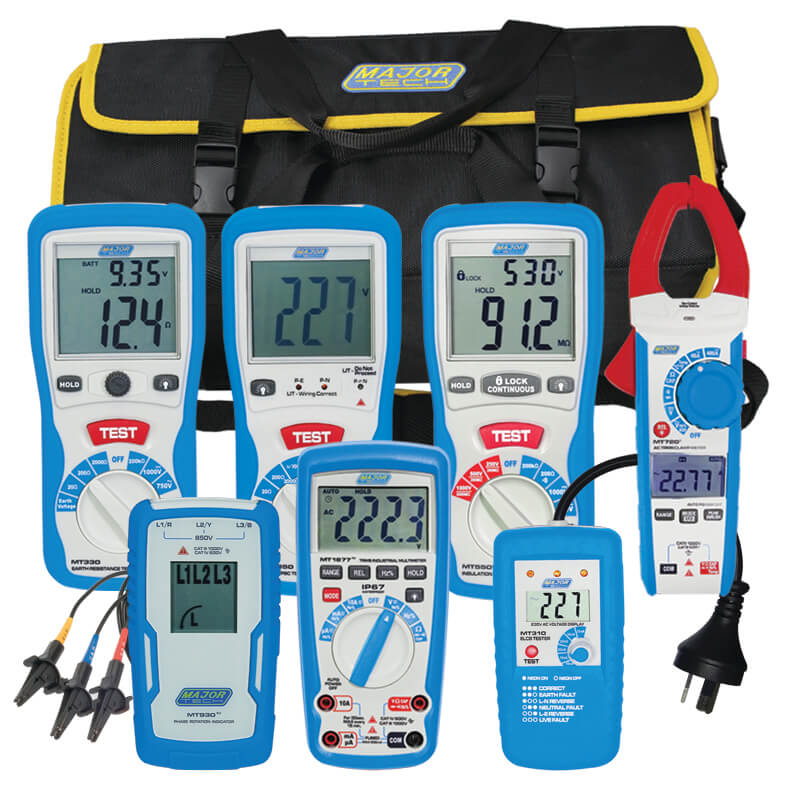

Contractors Test Kit

Kit Includes :

• MT330 – Earth Resistance Tester
• MT350 – Loop Impedance and PSC Tester
• MT550 – 1000V Digital Insulation Tester
• MT720 – 400A AC Clamp Meter
• MT310 – ELCB Tester
• MT930 – Phase Rotation Meter
• MT1877 – 1000V IP67 True RMS Multimeter
• MTKBAG – Heavy Duty Meter Case

Description

The MTK25 is a contractors kit which includes an earth resistance tester, loop impedance and PSC tester, digital insulation tester, phase rotation meter, clamp meter, ELCB tester and multimeter in a heavy duty meter case.

• MT330 – Earth Resistance Tester
  • CAT IV 600V and CAT III 1000V
  • Earth Resistance 2000Ω
  • Earth voltage to 200V
  • AC Voltage 750V
  • DC Voltage 1000V
  • Resistance 200kꭥ
  • Frequency 400Hz
  • Indicates if resistance of auxiliary spikes is within tolerance
  • Direct readout of the earth resistance on the LCD display
  • Overrange indicator
  • Zero adjustment of leads
  • Data Hold
  • Overmould casing
  • Dual LCD with backlight
  • Ideal for earth rods and lightning conductors
• MT350 – Loop Impedance and PSC Tester
  • CAT III 600V and CAT II 1000V
  • Custom microprocessor controlled for highest accuracy and reliability
  • Loop Range 2000ꭥ
  • PSC/PFC 20kA
  • Voltage 255V
  • Frequency 50Hz
  • Test Current 25A
  • Loop impedance of 2000Ω range measurement is carried out with low test current (15mA)
  • Automatic Lock-Out if Test Resistor Overheats
  • Direct readout of Prospective Short Circuit Current and Earth Fault Current
  • Measures low loop impedance of 0.01Ω
  • 3 LED’s for checking correct wiring status
  • Safe voltage measurement function
  • Visual indication of reversed phase and neutral at wiring socket
  • Double injection rubber housing
• MT550 – 1000V Digital Insulation Tester
  • CAT IV 600V and CAT III 1000V
  • DC Voltage 1000V
  • AC Voltage 750
  • Resistance 200kꭥ
  • 3 test ranges 250V-500V-1000V
  • Live Circuit warning and buzzer
  • Data Hold function
  • 1mA output current on insulation test
  • 200mA short circuit on continuity range
  • Continuity Buzzer
  • Automatic discharge after test
  • Lock down Test Button for continuous use
  • Hands free strap and magnet supplied as standard accessories
  • Rubber overmould housing
  • Illuminated display
• MT720 – 400A AC Clamp Meter
  • CAT III 600V and CAT II 1000V
  • 4000 count backlit LCD display
  • AC and DC Voltage 1000V
  • AC Current 400A
  • Resistance 40Mꭥ
  • Frequency 100kHz
  • Capacitance 99.99mF
  • Temperate -20 to 1000˚C
  • Duty Cycle 80%
  • Ø30mm Cable Clamp size
  • INRUSH Current Measurements
  • VFD – Variable Frequency Drive voltage value
  • NCV – Non-Contact Voltage Detector
  • Built-In Flashlight
  • Continuity buzzer and Diode Test
  • Peak Mode and Data Hold function
  • Auto Power Off
• MT310 – ELCB Tester
  • CAT IV 300V and CAT III 600V
  • Compact, lightweight and easy to use
  • AC Voltage Measurement 245V
  • Frequency Response 60Hz
  • Test Current 35mA
  • Correct Wiring Indication with neon lights
  • Operates on 230V systems
  • AC Voltage measurement on LCD display
  • Fixed current settings from 10mA to 35mA
  • Separate test button
  • Double injection rubber housing
• MT930 – Phase Rotation Meter
  • CAT IV 300V and CAT III 600V
  • Large LCD Display
  • AC Voltage 690V
  • Measuring Frequency 400Hz
  • Phase rotation indication
  • 3-Phase Indication
  • Checks phase sequence and open phase simultaneously
  • Double injection rubber housing
  • Small lightweight and portable
  • Can check a wide range of 3-phase power source
  • Large size crocodile clips
• MT1877 – 1000V IP67 True RMS Multimeter
  • CAT IV 600V and CAT III 1000V
  • IP67 Dust & Waterproof double moulded housing
  • AC and DC Voltage 1000V
  • AC and DC Current 10A
  • Resistance 40MΩ
  • Frequency 10MHz
  • Capacitance 99.99mF
  • Duty Cycle 99.9%
  • Blue back light for dimly lit areas
  • Non-contact voltage detector above 110V AC, the LCD turns red.
  • Auto Range with Manual Override
  • Relative Mode
  • Data Hold
  • Duty Cycle
  • 4000 Count LCD
  • Full Ranges Protection
  • Auto Power Off
  • Integrated Test Lead Holder

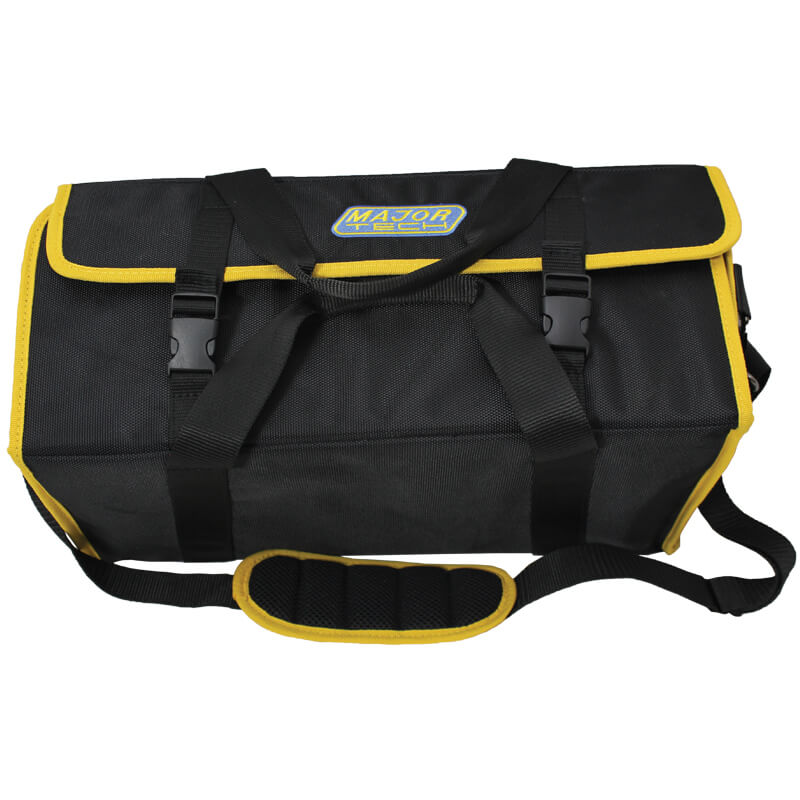

• MTKBAG – Heavy Duty Meter Case
  • Carrying case to house a range of meters the user needs to carry at any one time
  • Specially designed by Major Tech to be compact with a shoulder strap
  • Adjustable compartments for bigger instruments or tools
  • Pocket for instruction manuals or documentation
  • Size – 220mm (H) x 450mm (W) x 200mm (D)
