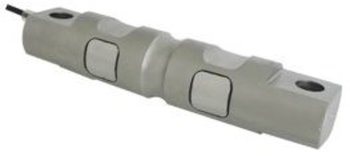

The PT9000 is a medium to high capacity nickel plated tool steel, double ended shear beam load cell.
Designed for use in industrial environments including outdoors where the IP67 rating helps protect it from wash down and other harsh activitiesl. Bin, tank and hopper weighing is made easy with the PT9000M TWA, see related products below for details on the PT9000M Tank Weighing Assembly (TWA)

Pdf_icon PT9000 Datasheet
Product Brochure and Specifications

SPECIFICATIONS
Signal output at capacity 3±0.003 mV/V
Linearity Error < 0.017% FSO
Non-Repeatability < 0.010% FSO
Combined Error < 0.020% FSO
Hysteresis < 0.020% FSO
Creep/(30 mins) < 0.020% FSO
Zero Balance < 1% Capacity
Temperature Effect On Span/10ºC < 0.014% FSO
Temperature Effect on Zero/10ºC < 0.018% FSO
Operating Temperature Range -35 ~ 65 C
Storage Temperature Range -50 ~ 85 C
Sealing IP67
Connection:
Excitation +ve RED
Signal +ve GREEN
Service Load 100% Capacity
Safe Load 150% Capacity
Safe Side Load 100% Capacity
Ultimate Load 300% Capacity
Input Resistance 700Ω ± 7Ω
Output Resistance 700Ω ± 7Ω
Insulation Resistance > 5000 MΩ (@50 VDC)
Excitation Voltage (Rec) 9 ~ 12V AC/DC
Excitation Voltage (Max) 18 V AC/DC
Cable (20klb) 4 core 9m long, Dia 5.0mm
Cable (30klb - 150klb) 4 core 9m long, Dia 8.0 mm
Load Cell Material Tool Steel, nickel plated
Cable Screen Colourless
Excitation -ve BLACK
Signal -ve WHITE

DIMENSIONS CAPACITIES
PT9000
 Model
PT9000-20klb
PT9000-30klb
PT9000-40klb
PT9000-50klb
PT9000-60klb
PT9000-75klb
PT9000-100klb
PT9000-150klb
 Capacity
20klb
30klb
40klb
50klb
60klb
75klb
100klb
150klb

Dimensions (mm)
Capacity
           Order              A
 B
 C
  D  E
 F
 G
 H
 J
 K
   R Weight(kg)
20klb
  90P20KBT000XXX 15.7
 174.6
 206.2
 49.5 21.3
 28.4
 16.7
 133.1
 30
 37.6
 12.7 2.35
30klb
  90P30KBT000XXX 22.4
 215.9
 260.4
 76.2 25.4
 60.2
 26.9
 165.1
 30
 69.3
 25.4 7.45
40klb
  90P40KBT000XXX 22.4
 215.9
 260.4
 76.2 25.4
 60.2
 26.9
 165.1
 30
 69.3
 25.4 7.5
50klb  90P50KBT000XXX 22.4 215.9 260.4 76.2 25.4 60.2 26.9 165.1 30 69.3 25.4 7.6
60klb  90P60KBT000XXX 22.4 215.9 260.4 76.2 25.4 60.2 26.9 165.1 30 69.3 25.4 7.6
75klb  90P75KBT000XXX 22.4 215.9 260.4 76.2 25.4 60.2 26.9 165.1 30 69.3 25.4 7.6
100klb  90P100KBT000XX 22.4 241.3 285.8 88.9 31.0 63.5 26.9 190.2 30 82.3 38.1 11.5
150klb  90P150KBT000XX 22.4 241.3 285.8 99.1 31.0 71.1 26.9 190.2 30 92.5 38.1 13.9
(Due to PT’s policy of continuous development, specifications and products offered are subject to change without notice.)
