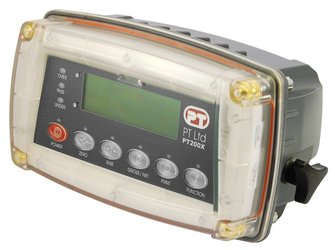

IP69K Weighing Indicator - PT200X

IP69K Weighing Indicator - PT200X

Regular price $2,009.36 AUD
Regular price Sale price $2,009.36 AUD
Sale Sold out
Shipping calculated at checkout.
View full details
The PT200X is all about industrial protection in harsh environments, based on the PT200 display series which has been widely used in weight displays for many years, the PT200X provides unparalleled protection.

Rated IP69k the highest environmental protection rating and constructed of an impact resistant plastic which will withstand high pressure water jets (1450psi) at high temperature (up to 80c) from multiple angles.

Using double O rings to seal the clam shell design the PT200X incorporates a continuous single front panel which protects the display and avoids leaks. Capacitive keyboard (no moving parts) means no membrane to fail, waterproof glands and connectors seal the cable entry. And when you need to test or calibrate you don’t even need to enter the housing, all you do is use the capacitive keyboard or place the optional magnetic PT OPTO-LINK onto the external display surface allowing for PC connection to upload or download configuration files.

Three models are offered,

Standard power input of 12 to 24VCD, 9.6, 12 and 24V batteries (2.5 VA max)- ON/OFF key with memory feature.

AC Power supply: 110/240VAC 50/60Hz

12V Battery pack (rechargeable NiMH)

The exceptional environmental protection designed into the PT200X is ideal for food processing, Automotive, Chemical, Pharmaceuticals and similar maximum protection industries where high pressure cleaning is required but due to the nature of the capacitive buttons it is worth considering the PT610 and PT620 where splashes or rain on the panel frequently occur.

  • Totalling
  • Unit switching
  • Check weighing – low, pass, high (3 colour status high intensity LEDs)
  • Configurable print format
  • RS232 as standard
  • Assignable Function Key, 3 Outputs
  • 1/30000 display resolution, (1/8,388,608 internal resolution)
  • Mains operation, Battery option
  • ON/OFF key with memory feature
Pdf_icon PT200X Operator Manual
Product Manual and Specifications

Resolution Up to 30,000 Divisions, Minimum of 0.25µV/Division, 20 Updates/Second, (Trade 4000 Divisions at 0.8µ/Division)
Zero Cancellation ±2mV/V
Span Adjustment 0.1mV/V to 3.0mV/V Full Scale
Stability/Drift Zero < 0.1µV/°C (+8ppm Deadload Max)
Span < 8ppm/°C
Linearity < 20ppm
Noise < 0.2µVp-p
Excitation 5V for up to 4 x 350 or 8 x 700Ω Load Cells (4-wire or 6-wire plus shield)
Max Total Load Cell Resistance 1.000Ω
A/D Type 24bit Sigma Delta with 8,388,608 Internal Counts
A/D Conversion Rate 20Hz with FIR Filtering > 80dB
Operating Environment IP69K, 100% Humidity, -10 ~ 50°C Ambient Temperature, -20 ~ 50°C Ambient Storage
Setup & Calibration Full Digital with Visual Prompting in Plain Messages
Digital Filter Sliding Window, Average 0.1 ~ 4 seconds
Zero Range Adjustable 2 ~ 20% Full Capacity
Display LED Backlit LCD, Six 20mm High Digits With Units & Annunciators
Standard Power Input 12 ~ 24V DC, 9.6, 12, 24V, batteries (2.5 VA max)
ON/OFF Key With Memory Feature
AC Plug Pack 110/240V AC 50/60HZ Input
Battery. 12V DC 1.2A Output, 12V Rechargeable NiMH pack
opto-LINK Data Coupling Infra-red Connector, Optional opto-LINK (PC RS-232 Port or USB Cable)
Case Materials PC + Polyester alloy, PBT, Silicon Rubber, SS304
RS-232 Automatic Transmit For Network or Printer Outputs, Transmission Rate: 2400, 4800, 9600 Baud
Assignable Function Key Unit Switching and Totalling
Isolated Transistor Drive Outputs 3x 400mA ea. At 12-24V DC
Battery Backed Clock Calendar Battery Life 10 years Minimum
Packing Weights Basic Indicator 2.0kg
Optional Accessories Wide bracket, narrow bracket, pole insert, opto-LINK
(Note: Bracket shown is sold as an option)
