Load & Shackle Pins
Load & Shackle Pins
Regular price
$3,223.33 AUD
Regular price
Sale price
$3,223.33 AUD
Unit price
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability

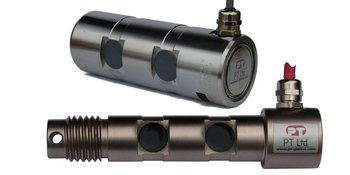

| The SLSP Stainless Steel Sensor Pin series of load measurement pins are designed for general use. They are machined from high tensile stainless steel and are normally supplied complete with anti-rotation flats or plates. The standard sensor pin is supplied exactly as per the technical data sheet and is ordered by specific part number for each capacity. However the nature and style of the SLSP product means that just about any existing structural pin or a new design concept pin can be manufactured. We meet many customers’ specific dimensional requirements and have huge databases of past sensor pin designs, many of which may suit your specific requirements without alteration. The SLSP Standard Series can be supplied as shown in the SLSP Standard Series datasheet (as below) or it can be modified to meet a particular application requirement. We are always pleased to discuss any special requirements that can be accommodated. The SLSP series can be supplied as is or combined with our extensive range of instrumentation to provide a complete load monitoring system. Specifications may vary depending upon installation and loading specifics. The mating connector accommodates PT cable packs diameter 4 ~ 8mm (not supplied). For 6 wire cables connect the appropriate Sense and excitation wires to the same connector terminal. |
|
 |
SLSP Datasheet |
| Product Brochure and Specifications |
| SPECIFICATIONS |
|||
| Signal output at capacity Linearity Error Non-Repeatability Combined Error Hysteresis Creep/(30 mins.) Zero Balance Temperature Effect on Span/10ºC Temperature Effect on Zero/10ºC Operating Temperature Range Storage Temperature Range Excitation +ve Signal +ve |
1.3 ~ 1.5 mV/V < 0.500% FSO < 0.050% FSO < 1.000% FSO < 0.100% FSO < 0.100% FSO < 1% Capacity < 0.030% FSO < 0.070% FSO -20 ~ 60 C -50 ~ 85 C Connector Pin 1 Connector Pin 4 |
Service Load Safe Load Safe Side Load Ultimate Load Input Resistance Output Resistance Insulation Resistance Excitation Voltage (Rec) Excitation Voltage (Max) Cable (screw connector) Material Excitation -ve Signal -ve |
100% Capacity 150% Capacity 100% Capacity 300% Capacity 800Ω ± 50Ω 705Ω ± 5Ω < 5000 MΩ (@50 VDC) 5 ~ 20 V AC/DC 25 V AC/DC M12 male 4 pole 17-4PH Stainless Steel Connector Pin 2 Connector Pin 3 |
| DIMENSIONS | CAPACITIES | |
 |
Model SLSP-6.5t SLSP-12t SLSP-25t SLSP-55t |
Capacity 6.5t 12t 25t 55t |
| Dimensions mm(inches) |
||||||||||||||||||
| Capacity |
Order | A |
B |
C |
D | E |
F |
G |
H |
I | J | K | L | T | Weight |
|||
| 6.5t |
SLSP6500S000XX | 10.0 |
22.5 |
80 |
25.0 | 19.0 |
42.0 |
5.0 |
22.0 |
36.0 | 33 | 34 | 142.5 | (1" x 8 tpi UNC) | 0.9kg |
|||
| 12t |
SLSP012TS000XX | 15.0 |
31.5 |
115 |
35.0 | 25.0 |
52.0 |
8.5 |
32.0 |
51.0 | 41 | 42 | 191.5 | (1-3/8" x 6 tpi UNC) | 1.8kg |
|||
| 25t |
SLSP025TS000XX | 20.0 |
46.0 |
165 |
50.8 | 42.0 |
63.0 |
11.0 |
46.0 |
73.0 | 54 | 55 | 266.0 | (2" x 4.5 tpi UNC) | 4.5kg |
|||
| 55t | SLSP055TS000XX | 25.0 | 63.0 | 235 | 70.0 | 62.0 | 88.0 | 15.0 | 65.0 | 105.0 | 74 | 75 | 358.0 | (2-¾" x 4 tpi UNC) | 12.1kg | |||
