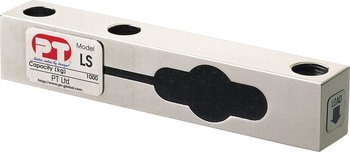

The LS is one of the few true low profile shearbeam loadcells. If height is an issue with your application, consider a 1t shearbeam at only 24mm high, similar space savings are seen across the LS series.

Known and recognised by its keyhole feature, the LS is used extensively in airport baggage scales and all types of above and in-ground platform weighing scales.

With one of the worlds largest capacity spreads in a single model the LS is available from 50kg to 10t in 8 capacities.

A full range of mounting accessories are available.

Videologo_tiny

LS Load Cell
videoLS - Introducing the LS shear beam load cell
Pdf_icon LS Datasheet
Product Brochure and Specifications
SPECIFICATIONS
Nominal Capacity 50kg ~ 10t
Signal output at capacity 2mV/V ± 0.1%
Linearity Error < 0.017% FSO
Non-Repeatability < 0.010% FSO
Combined Error < 0.023% FSO
Hysteresis < 0.010% FSO
Creep/Zero Return(30 mins) < 0.023% / 0.017% FSO
Zero Balance < 1.000% Capacity
Temperature Effect On Span/10ºC < 0.010% FSO
Temperature Effect on Zero/10ºC < 0.015% Capacity
Compensated Temperature Range -10 ~ 50°C
Operating Temperature Range -30 ~ 70°C
Service Load 100% of Rated Capacity
Excitation +ve RED
Signal +ve GREEN
Sense +ve BROWN
Safe Load 150% of Rated Capacity
Ultimate Load 300% of Rated Capacity
Input Resistance 410Ω Nominal
Output Resistance 352.2Ω Matched ± 0.2Ω
Insulation Resistance(bdg to grd)) < 5000 MΩ at 100V DC
Excitation Voltage (Rec) 5 ~ 15V AC/DC
Excitation Voltage (Maximum) 15V AC/DC
Storage Temperature Range -50 ~ 70°C
Cable Type 5.5mm, Screened, PVC Sheath 6 Core x 0.24mm² (24 AWG)
Cable Length 3 Metres (50kg ~ 1t), 5 Metres (2.5t ~ 10t)
Material Alloy Tool Steel
Finish Electroless Nickel Plated
Excitation -ve BLACK
Signal -ve WHITE
Sense -ve BLUE

DIMENSIONS CAPACITIES
LS
 Model
LS-50kg
LS-100kg
LS-250kg
LS-500kg
LS-1t
LS-2.5t
LS-5t
LS10t
 Capacity
50kg
100kg
250kg
500kg
1t
2.5t
5t
10t

Dimensions (mm)
Capacity
 A
 B
 C
 D
 E
 F
 H
 L
 M
 R
 S T W X Weight
50kg
 10
 35
 72
 Ø12
 Ø11
 55
 20
 127
 24
 2
 Ø10.3 M12 x 1.75 20 45 0.4
100kg
 10
 35
 72
 Ø12
 Ø11
 55
 20
 127
 24
 2
 Ø10.3 M12 x 1.75 20 45 0.4
250kg
 10
 35
 72
 Ø12
 Ø11
 55
 18
 127
 24
 2
 Ø10.3 M12 x 1.75 20 45 0.4
500kg 10 35 72 Ø12 Ø11 55 24 127 24 2 Ø10.3 M12 x 1.75 20 45 0.5
1t
 10
 35
 72
 Ø12
 Ø11
 55
 24
 127
 24
 2
 Ø10.3 M12 x 1.75 20 45 0.5
2.5t
 15
 64
 88
 Ø20
 Ø13
 94
 38
 182
 43
 5
 Ø13.0 none 25 75 1.2
 5t
 20
 76
 109
 Ø30
 Ø17
 115
 47.5
 225
 63
 7.5
 Ø17.0 none 35 210 2.6
10t
 25
 90
 112
 Ø40
 Ø26
 115
 65
 252
 78
 10
 Ø26.0 none 48 710 4.9
(Due to PT’s policy of continuous development, specifications and products offered are subject to change without notice.)
