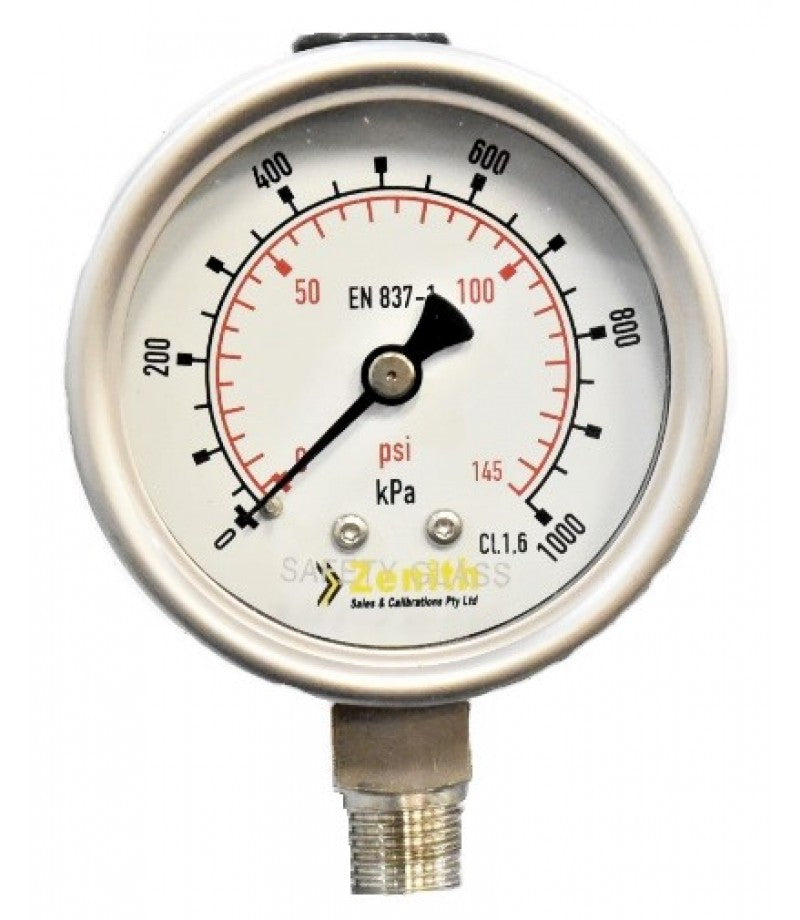

Pressure Gauge Full SS Dial Size 63mm ( 2.5" ) Bottom Entry 1/4" BSPT

Pressure Gauge Full SS Dial Size 63mm ( 2.5" ) Bottom Entry 1/4" BSPT

Regular price $95.00 AUD
Regular price Sale price $95.00 AUD
Sale Sold out
Shipping calculated at checkout.

With liquid -filled case for applications with High dynamic Pressure Loads or Vibrations For Gaseous and Liquid Media that are not highly viscous or crystallizing also in aggressive ambience Process Industry :Chemical/Petro-chemical , Power stations , Mining , on-and offshore, environmental technology, machine , Building and General Plant construction.

View full details
Scale: Dual kPa and psi
Nominal size :2.5″ - 63mm
Accuracy :+-1.6% of full scales
Range available: -100 kPa to 60000 kPa ( In-Stock) and up to 100000 kPa ( By Order ) or all other equivalent vacuum or combined pressure and vacuum ranges
Pressure limitation : Steady : Full scale
Short time : Full scale
Operating Temperature
Ambient: -4°F to 140°F (-20°C to +60°C)
Media: +200°C Maxim without liquid filling +100 °C maximum with liquid filling (silicon oil)
Ingress Protection : IP 65 per EN60529/IEC60529
Service Fluid : compatible gases and liquids
Housing: stainless steel 304 case and bayonet ring .
Windows : Safety Glass
Liquid filled : Glycerin (Optional: Silicon Oil)
Bourdon Tube : Stainless steel 316L
Movement : Stainless steel 304
Process Connection: Stainless steel 316L
Thread : 1/4″ BSPT ( Optional: SS 316L: Adapter: 1/4″ NPT / 3/8″ BSPT / 1/2″ BSPT)
Dials: Aluminum White background Black or black and red lettering

Download Product Datasheet  : Download
