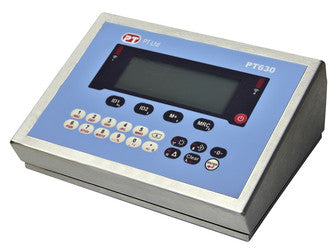

PT630 Advanced Indicator

PT630 Advanced Indicator

$3,175.88 AUD
$3,175.88 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.
View full details

The PT630 is one of the series PT610, PT620, PT630 advanced indicator series, built robust for industrial, agricultural and hygienic area operation.

The PT630 is an advanced, high quality general purpose weighing indicator for industry in a durable IP67 stainless steel housing. Ideal for platform, truck and hopper scales among other applications and is available with a wide range of options.

The PT630 is approved by Weights & Measures Authorities for use in Accuracy Class III applications with 10000 intervals in accordance with OIML R76. Weighing, and Dynamic weighing for animals and fluctuating loads, check weighing, classifying, filling and counting are standard as is printing which is selectable from 6 languages.

Powerful Bi-directional Serial Interface (BSI-BASE, BSI-PRO) communication as standard. A wide range of options is available for integration by Fieldbus connectivity, desk, wall or panel mounting and digital I/O.

Easy, practical operation via navigation keys with 6 large 22mm digits, 16 alphanumeric characters 8mm high and wide viewing angle, multi-colour backlit LCD display.

The PT630 is powered by AC power with integral mains cable. A version is available for powering from 12-28VDC.

Pdf_icon PT630 Datasheet
Product Brochure and Specifications
SPECIFICATIONS
A/D converter type 24 bit Delta-Sigma ratiometric with integral analogue and digital filters
Conversion Rate Up to 800 conversions per second.
Input sensitivity 0.4 μV/d (approved); 0.05μV/d (non approved)-5mV to +19mV
Analogue input range -5mV to +19mV
Zero offset adjustment range -5mV to +19mV
Display resolution up to 10 000 increments (approved); up to 999 999 increments (industrial)
Internal resolution up to 16 000 000
Non-linearity, temp. coefficient Within 0.0015% FS, < 2 ppm/ºC
Display Wide view angle backlit LCD with 6x 22mm digit height main numerals and 16x 8mm alphanumeric characters. Display of units and status. Bar graph. 3 backlight colours, selectable or programmable, smart bar status.
Scale Capacity and units Up to 300 000kg, Units g, kg, oz, lb Metric/Imperial switchable
Calibration Span calibration with weights, even without without zero calibration.
vCal for calibration by direct entry of load cell characteristics.
Temporary zero calibration, Zero adjustment, Gain adjustment
Calibration of span and zero by fieldbus commands.
Digital filter 5 step programmable adaptive digital filter, Dynamic/Animal weighing
Weighing functions Tare, zeroing, auto zero track, motion detection, auto-zero at power up, tare status save at power off, increased resolution, automatic tare and clear, temporary gross indication, unit change.
Other Functions Pre-settable label (print ticket) count number, gross or tare indication, storage for 500 sets of setpoints. 2nd scale option for the PT630.
Load cell Excitation 5VDC 125mA
Number of load cells Up to 8 load cells 350Ω, 16 load cells 700Ω, in parallel.
Load cell connection 4 or 6 wire connection. Cable length: maximum 1000 m/mm² for 6-wires
RS-232 (2x 3 wire) and modes 1200 to 57600 baud, 7/8 bit, E/O/N. Command, continuous, Printer, BSI, BSI-PRO.
RS-485 and modes 1200 to 57600 baud, 7/8 bit, E/O/N. Command, continuous, Printer, BSI, BSI-PRO output. Up to 31 units on the bus.
USB Standard USB for Mini-B cable (internal on PCB). Command, continuous, Printer, BSI, BSI-PROI communications.
Ethernet onboard 10 / 100 Mbit/s, Full duplex. Manual IP assigned with EtherX PC Software or by front panel in programming mode. Server or Client modes. Switched Ethernet transmission with shielded twisted pair cables and RJ-45. Galvanically isolated bus electronics. Up to 4 ms response delay after read/write commands. Output available in continuous, Printer, BSI, BSI-PRO communications.
Response Speed < 4mS response delay from read/write commands.
Fieldbus/Ethernet Optional. Refer , table for applicability.
Print Format Programmable 1 line or multi-line, print ticket count number can be preset.
Label printing with graphic (3rd party software may be required for graphic)
Print languages English, German, French, Italian, Spanish, Turkish
Additional standard applications Check-weighing, classifying, filling, counting and high resolution scales
Additional weighing functions Piece Counting, Weight Totalling, Piece Totalling, Pre-Tare entry, 2nd scale platform (2 platform weighing).
Additional data storage Pre-Tare value storage (500 values), ID data (ID1, 500 records for stored items), ID data (ID1, 500 records for stored items), ID Data (ID2, second set 500 records), Average Piece Weight storage for counting (500 values)
Digital/Analogue Inputs and Outputs Optional, Refer comparison table for applicability.
Power Connection Integral cable, 100-240 VAC (100-125VAC with USA plug), 50-60 Hz. 12VDC (12-28) configurable.
Operating Environment -15ºC to +55ºC; max. 90% RH (80% RH, -10~40ºC approved), non-condensing. IP67 sealing with pressure equalising port.
Enclosure Stainless steel. Wall type: 260x200x65mm, Desk type: 250x180x85mm, weight 2.3kg net, 3.2kg gross. Packing size 290x280x210mm.
Optional Interface Cards: Purchased additionally
Alibi Memory SD card, Up to 999999 records.
Digital Input/Output option card Opto-isolated 4 digital input, 12 to 28 VDC, 10mA, 5 relay outputs, maximum 250 VAC or 30 VDC, 0.2A
Modbus SD (RTU /TCP) for on-board ports SD card with software, RTU for RS232C and RS485, TCP for Ethernet, < 4mS response delay from read/write commands.
Analogue option card Analogue Output; 4–20, 0–20mA, 0–5VDC, 0–10VDC. Max 60000 steps, load 500Ω – 10kΩ
Digital Inputs; Opto-isolated 4 digital input, 12 to 28 VDC, 10mA
Digital Outputs; 5 relay outputs, maximum 250 VAC or 30 VDC, 0.2A
Speed; < 4mS response delay from read/write commands.
Optional Interface Cards: Purchased additionally
Ethernet TCP/IP (Includes Modbus) Data Rate: 10 / 100 Mbit/s, Full duplex.
TCP/IP settings: Manual IP assigned with EtherX PC Software or by front panel in programming mode. Server or Client modes.
Topology: Switched Ethernet transmission with shielded twisted pair cables and RJ-45.
Isolation: Galvanically isolated bus electronics.
Response Speed: < 4 ms response delay after read/write commands.
Protocols: Output available in continuous, Printer, BSI, BSI-PRO communications + Modbus.
Digital Inputs: Opto-isolated 4 digital input, 12 to 28 VDC, 10mA
Digital Outputs: 5 relay outputs, maximum 250 VAC or 30 VDC, 0.2A
PROFIBUS option card Protocol and Data Rate: PROFIBUS DP V1. 9.6 kbit/s to 12 Mbit/s automatic baud rate detection,
PLC setup: Generic GSD-file provided.
Topology: Media dependent, RS-485 segmented line without stubs.
Installation: Shielded twisted pair cable, line length depending on physical media and transmission speed.
Maximum stations: Up to 32 stations per segment, up to 126 stations per network.
Isolation: Galvanically isolated bus electronics.
Response Speed: < 4mS response delay from read/write commands.
Digital Inputs: Opto-isolated 4 digital input, 12 to 28 VDC, 10mA
Digital Outputs: 5 relay outputs, maximum 250 VAC or 30 VDC, 0.2A
PROFINET option card Data Rate: 100 Mbit/s, full duplex
PLC setup: Generic GSDML-file provided
TCP/IP settings: DHCP or manual IP assignment EtherX PC Software or by front panel in programming mode. Device identity customization.
Topology: Line, Bus, Star or Tree topology depending on physical media.
Installation: Switched Ethernet transmission with shielded twisted pair cables and RJ-45 connectors.
Isolation: Galvanically isolated bus electronics.
Response Speed: < 4mS response delay from read/write commands.
Digital Inputs: Opto-isolated 4 digital input, 12 to 28 VDC, 10mA
Digital Outputs: 5 relay outputs, maximum 250 VAC or 30 VDC, 0.2A
EtherNet/IP option card Data Rate: 10/100 Mbit/s, full duplex
PLC setup: Generic EDS file provided
TCP/IP settings: DHCP or manual IP assignment EtherX PC Software or by front panel in programming mode. Device identity customization.
Topology: Line, Bus, Star or Tree topology depending on physical media. DLR (Device Level Ring) available.
Installation: Switched Ethernet transmission with shielded twisted pair cables and RJ-45 connectors.
Web Client: Available
Isolation: Galvanically isolated bus electronics.
Response Speed: < 4mS response delay from read/write commands.
Digital Inputs: Opto-isolated 4 digital input, 12 to 28 VDC, 10mA
Digital Outputs: 5 relay outputs, maximum 250 VAC or 30 VDC, 0.2A
CANopen option card Data Rate: 10 kbit/s – 1 Mbit/s (selectable) kbit/s
PLC setup: Generic EDS-file provided
Topology: Line with Trunkline, Dropline structure and termination at both ends. Line length 25 – 500 metres, dependent upon baud rate.
Installation: 2 wires shielded twisted pair cable. Alternatively 4 wire with 24 Volt power over the bus.
Maximum stations: Up to 127 stations per network.
Isolation: Galvanically isolated bus electronics
Response Speed: < 4mS response delay from read/write commands.
Digital Inputs: Opto-isolated 4 digital input, 12 to 28 VDC, 10mA
Digital Outputs: 5 relay outputs, maximum 250 VAC or 30 VDC, 0.2A
EtherCAT option card Data Rate: 100 Mbit/s, full duplex
PLC setup: Generic ESI-file provided
Topology: Line, Star, Daisychain or Tree topology depending on physical media.
Installation: Switched Ethernet transmission with shielded twisted pair cables and RJ-45 connectors.
Isolation: Galvanically isolated bus electronics
Response Speed: < 4mS response delay from read/write commands.
Digital Inputs: Opto-isolated 4 digital input, 12 to 28 VDC, 10mA
Digital Outputs: 5 relay outputs, maximum 250 VAC or 30 VDC, 0.2A
CC-Link option card Data Rate: 156 kbit/s – 10 Mbit/s (selectable)
Topology: Line with Trunkline, Branch structure and Termination at both Ends.
Installation: 3 wire shielded twisted pair.
Maximum stations: Up to 64 stations per network.
Isolation: Galvanically isolated bus electronics
Response Speed: < 4mS response delay from read/write commands.
Digital Inputs: Opto-isolated 4 digital input, 12 to 28 VDC, 10mA
Digital Outputs: 5 relay outputs, maximum 250 VAC or 30 VDC, 0.2A
Powerlink option card Protocol: Ethernet POWERLINK V2.0 Communication Profile Specification ver. 1.2.0
Data Rate: 100 Mbit/s, half duplex
PLC setup: Generic XDD-file provided
Topology: Ring, Star, Daisychain or Tree topology. Ring redundancy available.
Installation: Switched Ethernet transmission with shielded twisted pair cables and RJ-45 connectors.
Isolation: Galvanically isolated bus electronics
Response Speed: < 4mS response delay from read/write commands.
Digital Inputs: Opto-isolated 4 digital input, 12 to 28 VDC, 10mA
Digital Outputs: 5 relay outputs, maximum 250 VAC or 30 VDC, 0.2A


Details in the table below show the comprehensive offerings built into this advanced state of the art digital indicator.

Models
 Desk Mount PT610DM PT620DM PT630DM
Wall Mount PT610WM PT620WM PT630WM
Panel Mount PT610PM PT620PM PT630PM
Touch Free IR Keys (2 Keys) n/a n/a Yes
Ethernet (TCP/IP) interface Note 3 n/a
Modbus (RTU /TCP) Note 3 n/a O
PROFIBUS DPV1 interface + 4 Input/5 Relay Output O1 n/a O1
PROFINET interface + 4 Input/5 Relay Output
EtherNet/IP interface + 4 Input/5 Relay Output
CANopen interface + 4 Input/5 Relay Output
EtherCAT interface + 4 Input/5 Relay Output
CC-Link interface + 4 Input/5 Relay Output
Powerlink interface + 4 Input/5 Relay Output
2 Platform weighing n/a n/a O
BSI data interface (BSI-PRO, BSI-DIALOG) n/a Yes
Check-weighing
Classifying by weight
Filling (non-automatic filling mode)
Piece Counting
Volume calculation (from entered density)
Weight Totalling
Piece Totalling
Pre-Tare entry
Pre-Tare value storage (500 values)
ID data (ID1, 500 records for stored items)
ID Data (ID2, second set 500 records)
Average Piece Weight storage for counting (500 values)
Alibi Memory (999999 records) O
Dynamic/Animal weighing (weighing unstable loads) Yes
Semi-auto/Auto tare, auto tare clear
Setpoint storage (500 sets)
Unit selection (g, kg, t, lb, oz)
Unit Switching (kg/lb, g/oz)
Docket Printing, Print on demand, auto-print
Label Printing (with Barcode2)
Auto-zero tracking and auto-zero at power-up
Motion detection
Adaptive digital filter for faster measuring
Electronic calibration (vCal) without test weights
Electronic calibration (vCal) over field bus
Zeroing and Taring via fieldbus
Zero and Span calibrations over field bus
Zero adjustment without span change
Span adjustment with test weights
Span adjustment without unloading the scale
3 point calibration (linearity correction)
Programming by PT AzCom PC software
8 load cells 350 Ω or 16 load cells 700 Ω
100 – 240 VAC
12 to 28 VDC power supply range
1 000 to 999 999 display resolution
High internal resolution up to 16 000 000 counts
Up to 800 conversion per second
RS-232C Serial interface
RS-232C Second Serial interface
RS-485 Serial interface
USB Serial Interface
BSI data interface (BSI-BASE)
Continuous data output
Fast Continuous data output
4 Digital Inputs, 5 relay outputs (4 DI / 5 RO) O1
Analogue output (4–20, 0–20mA,0–5, 0–10VDC) + 4 DI / 5 RO

O = Option.
O1 = Only one Option can be installed at a time.
2 = Third party barcode software required.
3 = Standard in PT610DM, optional in PT610WM and PT610PM.
n/a = Not Available
