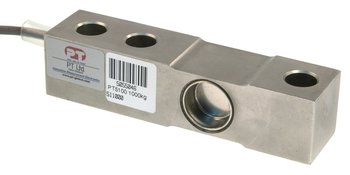

The PT5100 is a stainless steel shear beam load cell welded sealed with a protection rating of IP68. Suitable for demanding environmental conditions, or where peace of mind for a long life of demanding use is desired.

Every load cell is precision tested and verified to meet exact requirements. Available in 5 capacities from 500kg to 5000kg with 6 metres of 4 core cable.

Pdf_icon PT5100 Datasheet
Product Brochure and Specifications

SPECIFICATIONS
Signal Output at Capacity 2±0.005mV/V
Linearity Error < 0.020% FSO
Non-Repeatability < 0.010% FSO
Combined Error < 0.020% FSO
Hysteresis < 0.020% FSO
Creep/(30 mins) < 0.020% FSO
Zero Balance < 1% Capacity
Temperature Effect On Span/10C) < 0.015% FSO
Temperature Effect on Zero/10C) < 0.015% FSO
Operating Temperature Range - 20 ~ 65 C
Storage Temperature Range - 50 ~ 85 C
Excitation + ve RED
Signal + ve GREEN
Service Load 100% of Rated Capacity
Safe Load 150% of Rated Capacity
Safe Side Load 100% Capacity
Ultimate Load 300% Capacity
Input Resistance 350Ω ± 3Ω
Output Resistance 350Ω ± 3Ω
Insulation Resistance > 5000 MΩ (@ 50 VDC)
Excitation Voltage (Rec) 5 ~ 15V AC/DC
Excitation Voltage (Max 18 V AC/DC
Cable 6m, Dia, 4.5~5.0 mm
Material 17-4PH Stainless Steel
Excitation -ve BLACK
Signal -ve WHITE

DIMENSIONS CAPACITIES
PT5100
 Model
PT5100-250kg
PT5100-500kg
PT5100-1000kg
PT5100-2000kg
PT5100-3000kg
PT5100-5000kg
 Capacity
250kg
500kg
1000kg
2000kg
3000kg
5000kg

Dimensions (mm)
Capacity
 Order A
 B
 C
 D
 E
 F
 G
 H
 K
 L
    P Weight(kg)
250kg
 51M0250S000XXX
 16.0
 25.4
 76.2
 130.0
 30.8
 30.8
 13.5
 M12 x 1.75P
 16.0
 57.2
 13.5 1.14
500kg
  51M0500S000XXX
 16.0
 25.4
 76.2
 130.0
 30.8
 30.8
 13.5
 M12 x 1.75P
 16.0
 57.2
 13.5 1.14
1000kg
  51M1000S000XXX
 16.0
 25.4
 76.2
 130.0
 30.8
 30.8
 13.5
 M12 x 1.75P
 16.0
 57.2
 13.5 1.14
2000kg
  51M2000S000XXX 16.0
 25.4
 76.2
 130.0
 30.8
 30.8
 13.5
 M12 x 1.75P
 16.0
 57.2
 13.5 1.14
3000kg
  51M3000S000XXX 19.0
 38.1
 95.3
 171.5
 38.1
 38.1
 20.5
 M20 x 2.5P
 19.0
 76.2
 20.5 1.94
5000kg
  51M5000S000XXX 19.0
 38.1
 95.3
 171.5
 38.1
 38.1
 20.5
 M20 x 2.5P
 19.0
 76.2
 20.5 1.94
