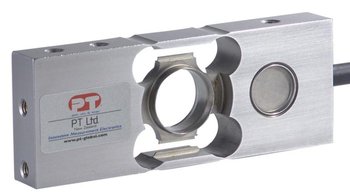

Stainless Steel Single Point Loadcell - PTSSP6-AW

Stainless Steel Single Point Loadcell - PTSSP6-AW

$2,320.32 AUD
$2,320.32 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.
View full details
The PTSSP6-AW is a fully welded stainless steel construction single point, sealed to IP68. Rated for capacities from 6kg to 60kg, with C3 accuracy class. Designed and built for minimal sensitivity to off-center loading common with single point use. Replaces many similar style cells such as Sensortronics model 60064, RT1 model HPS etc. Optimized to offer superb accuracy right through the capacity range and recommended for use on platforms up to 300mm x 300mm. Single-point platform scales, check weighing scales, bench scales, hopper scales and net-weighing units plus a variety of convey or style scales.

Pdf_icon PTSSP6-AW Datasheet
Product Brochure and Specifications


SPECIFICATIONS


Signal Output at Capacity
Linearity Error
Non-Repeatability
Combined Error
Off Centre Load Error
  Creep/(30 mins.)
Zero Balance
Temperature Effect On Span/10°C
Temperature Effect on Zero/10°C
Operating Temperature Range
Compensated Temperature Range
Storage Temperature Range
Excitation +ve
Signal +ve
Sense +ve
 2±0.2 mV/V
< 0.017% FSO
< 0.010% FSO
< 0.020% FSO
< 0.020% FSO
< 0.020% FSO
< 1% Capacity
< 0.014% FSO
< 0.017% FSO
-35 ~ +65 C
-10 ~ +40 C
-50 ~ 85 C
GREEN
WHITE
YELLOW
 Service Load
Safe Load
Ultimate Load
Input Resistance
Output Resistance
Insulation Resistance
Excitation Voltage (Rec)
Excitation Voltage (Max)
Cable
...
Material
Sealing
Excitation -ve
Signal -ve
Sense -ve
 100% Capacity
150% Capacity
300% Capacity
400Ω  ± 20Ω
350Ω  ± 3.5Ω
> 5000 MΩ (@50 VDC)
5 ~ 12 V AC/DC
18 V AC/DC
6m long, Ø5.1mm
4-wire shielded PU cable
17-4 PH Stainless Steel
IP68
BLACK
RED
BLUE

DIMENSIONS CAPACITIES
PTSSP6-AW Model
PTSSP6-AW   6kg
PTSSP6-AW 12kg
PTSSP6-AW 30kg
PTSSP6-AW 60kg

 Capacity
6kg
12kg
30kg
60kg
(Due to PT’s policy of continuous development, specifications and products offered are subject to change without notice.)
