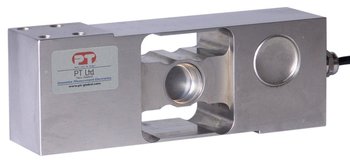

Stainless Steel Single Point Loadcell - PTSSP6-GW

Stainless Steel Single Point Loadcell - PTSSP6-GW

Regular price $2,230.98 AUD
Regular price Sale price $2,230.98 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.
View full details
The PTSSP6-GW is a fully welded stainless steel construction single point, sealed to IP68. Rated for capacities from 200kg to 500kg, with C3 accuracy class. Designed and built for minimal sensitivity to off-center loading common with single point use. Directly replaces many similar style 4 x M8 mounting hole stainless steel models. Optimized to offer superb accuracy right through the capacity range and recommended for use on platform scales, check weighing scales, bench scales, hopper scales and net-weighing units plus a variety of convey or style scales.


Pdf_icon PTSSP6-GW Datasheet
Product Brochure and Specifications


SPECIFICATIONS



Signal Output at Capacity
Linearity Error
Non-Repeatability
Combined Error
Off Centre Load Error
  Creep/(30 mins.)
Zero Balance
Temperature Effect On Span/10°C
Temperature Effect on Zero/10°C
Operating Temperature Range
Compensated Temperature Range
Storage Temperature Range
Excitation +ve
Signal +ve
2±0.2 mV/V
< 0.017% FSO
< 0.010% FSO
< 0.020% FSO
< 0.020% FSO
< 0.020% FSO
< 1% Capacity
< 0.014% FSO
< 0.017% FSO
-35 ~ +65 C
-10 ~ +40 C
-50 ~ 85 C
RED
GREEN
Service Load
Safe Load
Ultimate Load
Input Resistance
Output Resistance
Insulation Resistance
Excitation Voltage (Rec)
Excitation Voltage (Max)
Cable
...
Material
Sealing
Excitation -ve
Signal -ve
100% Capacity
150% Capacity
300% Capacity
350Ω ± 3.5Ω
350Ω ± 3.5Ω
> 5000 MΩ (@50 VDC)
5 ~ 12 V AC/DC
18 V AC/DC
3m long, Ø5.1
4-wire shielded PU cable
17-4ph Stainless Steel
IP68 Welded
BLACK
WHITE

DIMENSIONS CAPACITIES
PTSSP6-GW Model
PTSSP6-GW 200kg
PTSSP6-GW 300kg
PTSSP6-GW 400kg
PTSSP6-GW 500kg

Capacity
200kg
300kg
400kg
500kg
(Due to PT’s policy of continuous development, specifications and products offered are subject to change without notice.)
