Universal High Accuracy Pancake Loadcell - LPCH

Universal High Accuracy Pancake Loadcell - LPCH

$1,107.77 AUD
$1,107.77 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.
View full details

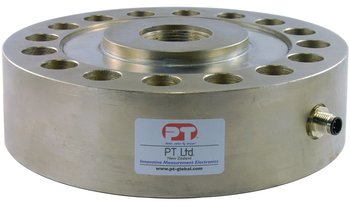

The LPCH is a universal load cell ideal for both tension and compression weighing. High accuracy paired with high overload capacity makes it a popular choice for materials testing, overhead and low profile weighing. Constructed of alloy steel and sealed to IP67, it also has recessed holes for flush mounting.

The LPCH is fitted with an industry standard M12 sensor connector sealed to IP67 and is supplied with a straight mating connector. The connector simplifies installation and maintenance.

Cable type and length to suit the requirements of the installation can be selected from our various cable packs.

Six wire cables should be installed by connecting the Sense+ with the Excitation+ to terminal 1 and the Sense- with the Excitation- to terminal 2 inside the connector.

Pdf_icon LPCH Datasheet
Product Brochure and Specifications

SPECIFICATIONS
Signal Output at Capacity 2±0.01 mV/V
Linearity Error < 0.020% FSO
Non-Repeatability < 0.020% FSO
Combined Error < 0.030% FSO
Hysteresis < 0.020% FSO
Creep/(30 mins.) < 0.020% FSO
Zero Balance < 2% Capacity
Temperature Effect on Span(/10C) < 0.02% FSO
Temperature Effect on Zero/10ºC < 0.02% FSO
Operating Temperature Range -35 ~ 65 C
Compensated Temperature Range -10 ~ 50 C
Storage Temperature Range -50 ~ 85 C
Excitation +ve Connector Pin 1
Signal +ve Connector Pin 4
Service Load 100% Capacity
Safe Load 150% Capacity
Safe Side Load 100% of axial load
Ultimate Load 300% Capacity
Input Resistance 750Ω ±5Ω
Output Resistance 700Ω ±3Ω
Insulation Resistance > 5000 MΩ (@50 VDC)
Excitation Voltage (Rec) 5 ~ 15 V AC/DC
Excitation Voltage (Max) 20 V AC/DC
Connector M12 Sensor type...
Material Alloy steel, nickel plated
Sealing IP67
Excitation -ve Connector Pin 2
Signal -ve Connector Pin 3

DIMENSIONS CAPACITIES
LPCH Model
LPCH-1t
LPCH-2.5t
LPCH-5t
LPCH-10t
LPCH-25t
LPCH-50t
LPCH-100t

 Capacity
1t
2.5t
5t
10t
25t
50t
100t

Dimensions (mm)
Capacity
          Order            A B
 C   D     E      F G H
 ØI J Weight(kg)
1t
 LPM1000T000XX1 35 105
 3 65 33 22.5°   8 Holes Ø 7.2 PCD 88.9 5/8" - 18UNF
 10.5 8.5 1.6
2.5t
 LPM2500T000XX1 35 105
 3 65 33 22.5°   8 Holes Ø 7.2 PCD 88.9 5/8" - 18UNF 10.5 8.5 1.6
5t
 LPM5000T000XX1 35 105
 3 65 33 22.5°   8 Holes Ø 7.2 PCD 88.9 5/8" - 18UNF 10.5 8.5 1.6
10t LPM010TT000XX1 44.5 155 3 90 62 15° 12 Holes Ø 10.5 PCD 130.2 1-¼" - 12UNF 17 10 4.7
25t LPM025TT000XX1 44.5 155 3 90 62 15° 12 Holes Ø 10.5 PCD 130.2 1-¼" - 12UNF 17 10 4.7
50t LPM050TT000XX1 63.5 205 6.5 115 89 11.25º 16 Holes Ø 13.5 PCD 165.1 1-¾" - 12UNF 20 13 11.7
100t LPM100TT000XX1 90 280 13 152 123 11.25º 16 Holes Ø 17.5 PCD 228.6  2-¾" - 8UNF 25 16 29.5
(Due to PT’s policy of continuous development, specifications and products offered are subject to change without notice.)
Specifications are with a factory fitted base.
