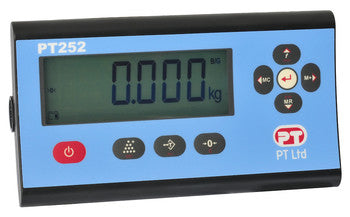

Weighing Indicator, General Purpose - PT252

Azure Series Entry Level Indicator.
The PT252 is a low cost, high quality general purpose weighing indicator for industry in a plastic housing.

The PT252 is approved by Weights & Measures Authorities for use in Accuracy Class III applications with 6000 and 2x 6000 intervals in accordance with OIML R76.

Weighing, Counting, Check weighing and Dynamic Weighing for animals are standard as is printing selectable from five languages. It has 100 memory locations for Average Part Weight for Counting and 100 product memories for check weighing.

Under, OK, Over Status bars and programmable buzzer for operator prompting are available for check weighing.

Easy and practical operation via navigation keys with two programmable function keys and 25mm high digits and wide viewing angle, backlit LCD display. The PT252 can also be configured as a remote display for Azure instruments.

The PT252 is powered by an AC power adapter and internal re-chargeable Li-ion long life battery.

FUNCTIONS
  • Basic Weighing
  • High/low/OK check Weighing with buzzer
  • Clock &  calendar &   part memory locations
  • lb/kg, g/oz switching
  • Live animal weight
  • Totalising for weighing and counting
  • Counting
  • Remote display with Zero and Tare


FEATURES
  • 30,000 displayed divisions
  • OIML R76 Approved
  • 12DC input with power adapter
  • 25mm wide angle LCD display with back light
  • 2 programmable function keys and navigation keys provide easy operation
  • Linearity correction
  • Gravity Adjustment
  • Li-Ion long life rechargeable battery
  • Auto Power off
  • Panel mount, desk stand, pole/wall bracket mounting included
  • RS-232C data port standard, 2nd RS-232C port option
  • Ticket printing with Date, Time, Ticket no, Gross, Tare & Net Weight
  • 100 product memories for check weighing and counting
  • Smart dynamic weighing algorithm for animal weighing
  • CE approved

Pdf_icon PT252 Datasheet
Product Brochure and Specifications
Pdf_icon PT252 OIML Certificate
R76_2006-DK3-16.03 - PT Limited - PT252_PT253

SPECIFICATIONS
Power Supply:  2000mAh Li-ion battery
Charging:  12VDC (10.5-14.6) and 100-240V AC Adaptor
Battery life:  Up to 36hrs for 1 load cell, 24hrs for 4x350Ω
Load Cell Excitation:  5V, up to 4x 350Ω or 8x 700Ω load cells, 4 or 6 wire
Input range:  0mV to +18mV. Minimum 0.1 μV/division
Zero Adjustment Range:  -18mV to +18mV
Scale Range:  Up to 15000kg or 30000lb
Units:  g, kg, oz, lb
Resolution:  Max. Displayed 30000, internal 16000000, 24 bit Delta Sigma ADC
Display:  112x40mm extra wide angle backlit LCD with 25mm digit height
Annunciators:  Gross, net, motion, centre of zero, units
Keypad:  9 key (on/off, user assignable Function, Tare/Clear, Zero, navigation and memory)
Operating Environment:  -15ºC to +55ºC; max. 85% RH, non-condensing. IP30 with front panel sealing.
Enclosure and Dimensions:  ABS, IP30 protected. 220x110x55mm
Calibration:  Calibration can be performed with or without load cell non-linearity correction.
Digital Filter:  Adaptive digital filter adjustable in 3 steps for standard weighing,
Adaptive digital filter adjustable in 4 steps for dynamic (animal) weighing.
Weighing Functions:  Taring, zeroing, auto zero tracking, motion detection, auto zero at power up, increased resolution, unit change, temporary gross weight indication, dynamic(animal) weighing.
Totalising:  2 separate total memories for Weighing and Counting
Counting:  Sampling or using Average Part Memory (APW), APW optimization is available with APW memory for 100 different parts. Sampling quantity selectable as 10,20,30,50,100 pcs
Check Weighing (classifying):  Under, OK, Over status bars on display and programmable buzzer, Memory for 100 products. Operator prompting with Under, OK, Over status bars on display and programmable internal buzzer
Dynamic (Animal Weighing):  Supported by smart dynamic weighing algorithms
RS-232:  1200 to 115200 baud, 8N1. 2nd RS232 available as an option (transmit only).
Data Output:  Demand, Continuous and Fast Continuous
Print ticket format:  Programmable for different weighing modes. Format may include Date, Time, Ticket No, Gross, Tare and Net weights, Quantity. Label (print ticket) count number can be Preset.
Date Format:  Programmable as dd.mm.yyyy, mm.dd.yyyy or yyyy.mm.dd
Print languages:  English, Turkish, German, French, Spanish
(Due to PT’s policy of continuous development, specifications and products offered are subject to change without notice.)
