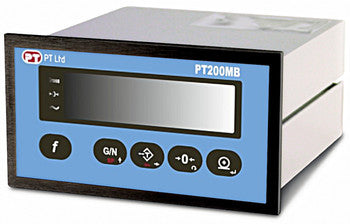

Weighing Indicator, Modbus Panel Mount - PT200MB

Weighing Indicator, Modbus Panel Mount - PT200MB

$1,364.86 AUD
$1,364.86 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.
View full details
The PT200MB is a smart indicator for industrial weighing process applications offering powerful PLC integration facilities; standard serial ports such as RS-232C, RS-485, 2 programmable digital I/O.

The PT200MB is approved by Weights & Measures Authorities for use in Accuracy Class III applications with 10000 scale intervals in accordance with OIML R76.

Powerful calibration options including vCal, Electronic calibration without test weights supporting fast easy setup and service. The PT200 features adaptive filtering for fast settling, high display resolution and a speed of up to 1600 conversions per second.

It’s small size aluminum body is perfect for panel installations, providing large 13.5mm LED digits and requiring little space on control panels..

INTEGRATION
  • RS-232C
  • RS-485
  • Modbus RTU
  • 2 digital I/O


FEATURES
  • Up to 1600 measurements per second
  • 16,000,000 internal resolutions
  • Up to 100000 scale divisions
  • OIML R76 Approved
  • Up to 8x 350 Ω load cells
  • Programmable for tension - compression testing
  • Bright 13.5 mm LED display
  • Multiple units (g, kg, t, lb, klb, N, kN)
  • vCal Electronic calibration from PC
  • Linearity correction
  • Gravity compensation adjustment
  • Programmable via PC
  • RS-232C & RS-485 serial interfaces
  • 12 - 28 VDC supply

Pdf_icon PT200MB Datasheet
Product Brochure and Specifications

SPECIFICATIONS
Power Supply:  12-28VDC max., 300mA.
Non-linearity:  <0.0015% FSO
Temperature Coefficient:  <2 ppm/ºC
Load Cell Excitation:  5V, 120mA max. (up to 8x 350Ω or 16x 700Ω load cells, 4 or 6 wire)
Input range:  0mV to +18mV (weighing).
-18mV to +18mV (bidirectional force)
Minimum 0.1 μV/division
Zero Adjustment Range:  -18mV to +18mV
Conversion Rate:  Up to 1600 times per second
Units:  g, kg, t, lb, klb, N, kN
Resolution:  Max. Displayed 100000, internal 16000000, 24 bit Delta Sigma ADC
Display:  6 digits, 7 segments red LED, 13.5 mm high
Display Annunciators:  Gross, net, motion, centre of zero, units
Keypad:  5 key (user assignable Function, G/N, Tare/Clear, Zero, Print) with lock
Operating Environment:  -15ºC to +55ºC; max. 85% RH, non-condensing. IP67 with front panel sealing.
Weighing Functions:  Tare, zeroing, auto zero track, motion detection, auto-zero at power up.
Calibration:  Span calibration with weights, even without without zero calibration. vCal for calibration by direct entry of load cell characteristics. Calibration of span and zero by fieldbus commands.
Digital Filter:  Adaptable filter adjustable in 10 steps.
Other Functions:  Pre-settable label (print ticket) count number, gross or tare indication.
Print ticket format:  Programmable as single line or multi-line.
Input/Output:  2 non-isolated programmable digital I/O
RS-232C:  1200 to 115200 baud, programmable. Continuous, Printer, BSI
RS-485:  1200 to 115200 baud, programmable. Up to 31 units on the bus
Modbus RTU:  1200 to 115200 baud, programmable, up to 31 units on the RS-485 bus.
Enclosure and Dimensions:  Plastic front panel, aluminium casing, stainless rear. 100mm x 55mm panel, 100mm deep. Panel cut-out 92x47mm.
table (Due to PT’s policy of continuous development, specifications and products offered are subject to change without notice.)
